Cal-Royal

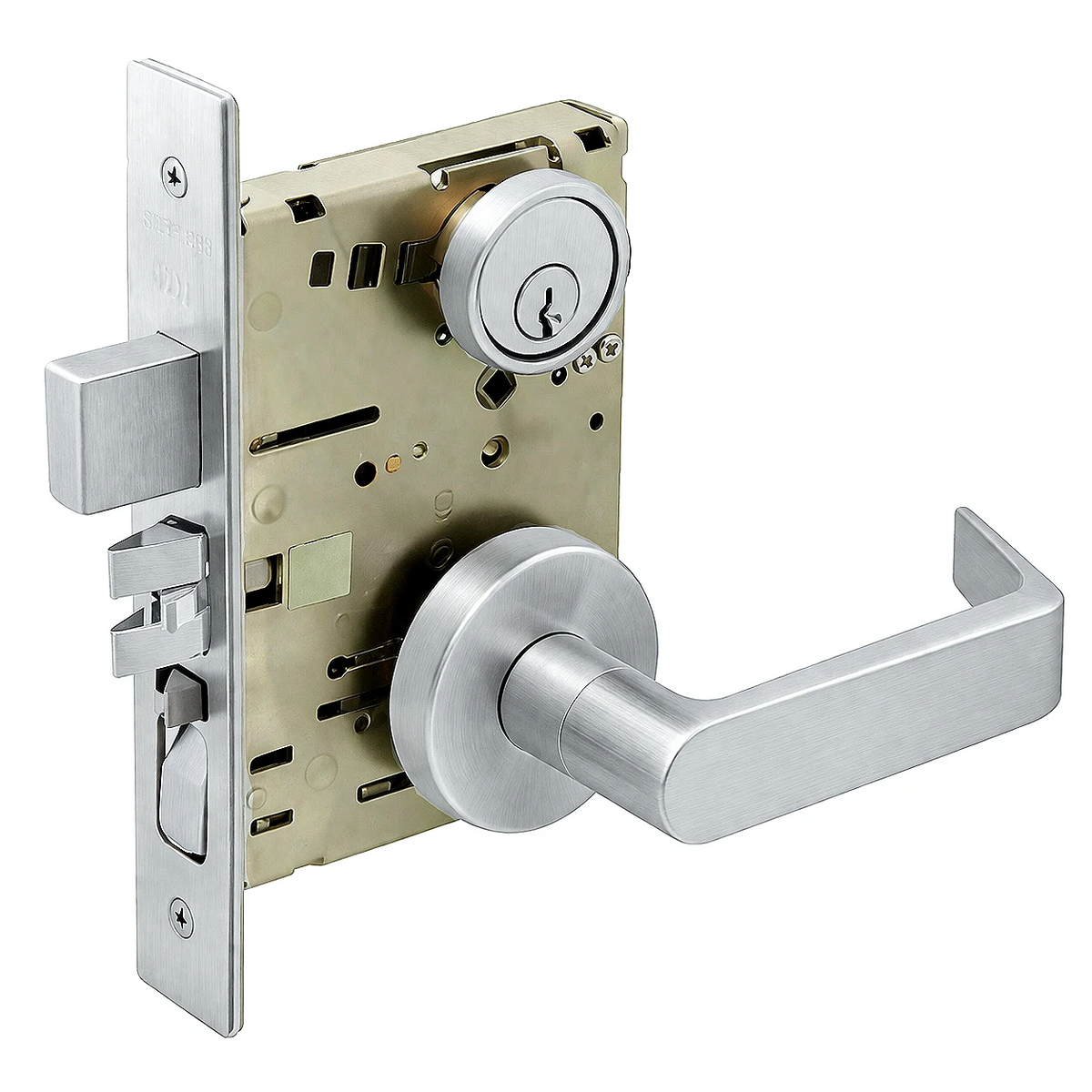

Cal-Royal NM Series Grade 1 Mortise Lock, Sectional Lever Trim, Satin Chrome

$285.00

Secure checkout

Free 3-day shipping over $850

30-day returns

Manufacturer warranty

Secure checkout — encrypted & PCI-compliant

A Grade 1 mortise lock from Cal-Royal's NM Series with sectional trim, in satin chrome. Pick the function and hand above.

Type	Mortise lock with lever trim
Grade	ANSI/BHMA A156.13 Grade 1, Series 1000
Trim	Sectional (SS): lever on a separate rose
Storeroom (NM8080)	The outside lever is always locked. The key or the inside lever retracts the latch.
Entrance with deadbolt (NM8453)	Either lever opens the latch unless the toggle button locks the outside lever. The key outside or the thumb turn inside throws the deadbolt.
Corridor with deadbolt (NM8456)	Either lever opens the latch. The key outside or the thumb turn inside throws or retracts the deadbolt.
Handing	Ordered left hand or right hand, field reversible
Backset	2-3/4 in.
Door thickness	1-3/4 in. For 2 in. to 2-1/4 in. doors, add kit SSMKIT214.
Case	4 in. x 5-3/4 in. x 1 in., 8 in. x 1-1/4 in. armored front
Latch and bolt	3/4 in. anti-friction latch bolt. Deadbolt (NM8453 and NM8456): 1 in. throw.
Cylinder	6-pin Schlage C keyway mortise cylinder, 2 keys
Fire rating	UL listed A label, 3 hour
ADA	Meets ANSI A117.1
Finish	Satin Chrome (US26D)
Warranty	Lifetime
Part numbers	NM8080-SS-LH-US26D NM8080-SS-RH-US26D NM8453-SS-LH-26D NM8453-SS-RH-26D NM8456-SS-LH-26D
