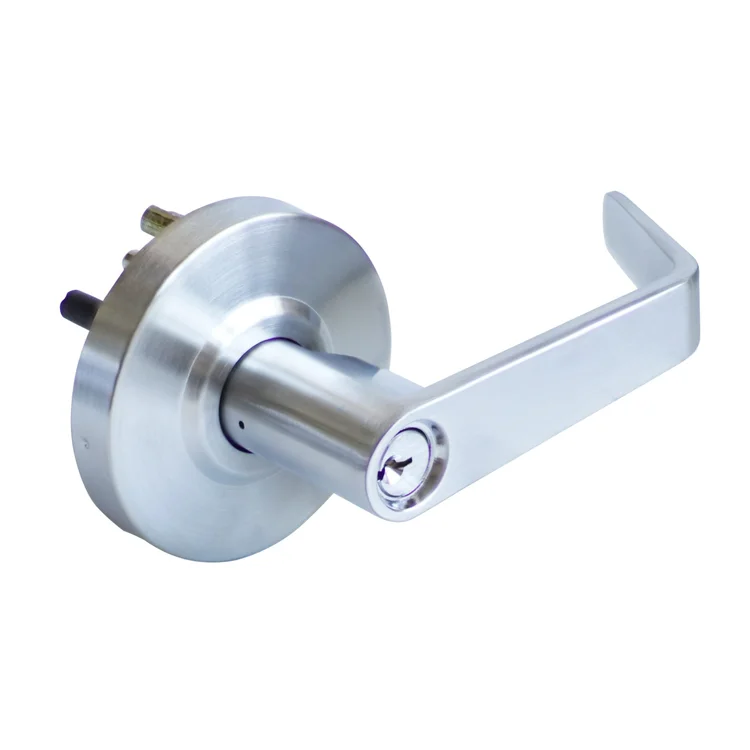

PHG EL5 Series Exit Device Lever Trim, Charlotte Lever, Satin Chrome
$64.95
Save $-64.95
Secure checkout
Free 3-day shipping over $850
30-day returns
Manufacturer warranty
Secure checkout — encrypted & PCI-compliant
Outside lever trim for Philadelphia Hardware Group Advantage exit devices, with the Charlotte (CT) lever in satin chrome. Pick the function above.
| Type | Exit device lever trim |
| Fits | PHG Advantage 7000, 7100, 9500 and 9700 series exit devices |
| Door thickness | 1-3/4 in. |
| Lever | Charlotte (CT), pressure cast zinc |
| Trim | Wrought stainless steel over steel, hardened steel heavy duty tailpiece |
| Cylinder | Schlage C, 2 keys |
| Finish | Satin chrome (US26D) |
| Entry (500) | A key locks or unlocks the outside lever. The exit device always works from inside. |
| Passage (501) | Outside lever always free |
| Storeroom (504) | Outside lever always locked, key retracts the latch (also called night latch) |
| Part numbers | 500EL-CT-26D: entry 501EL-CT-26D: passage 504EL-CT-26D: storeroom |
Questions on sizing, handing or trade pricing? Call (305) 324-7753, Mon to Fri, 8am to 5pm ET.
