Philadelphia Hardware Group

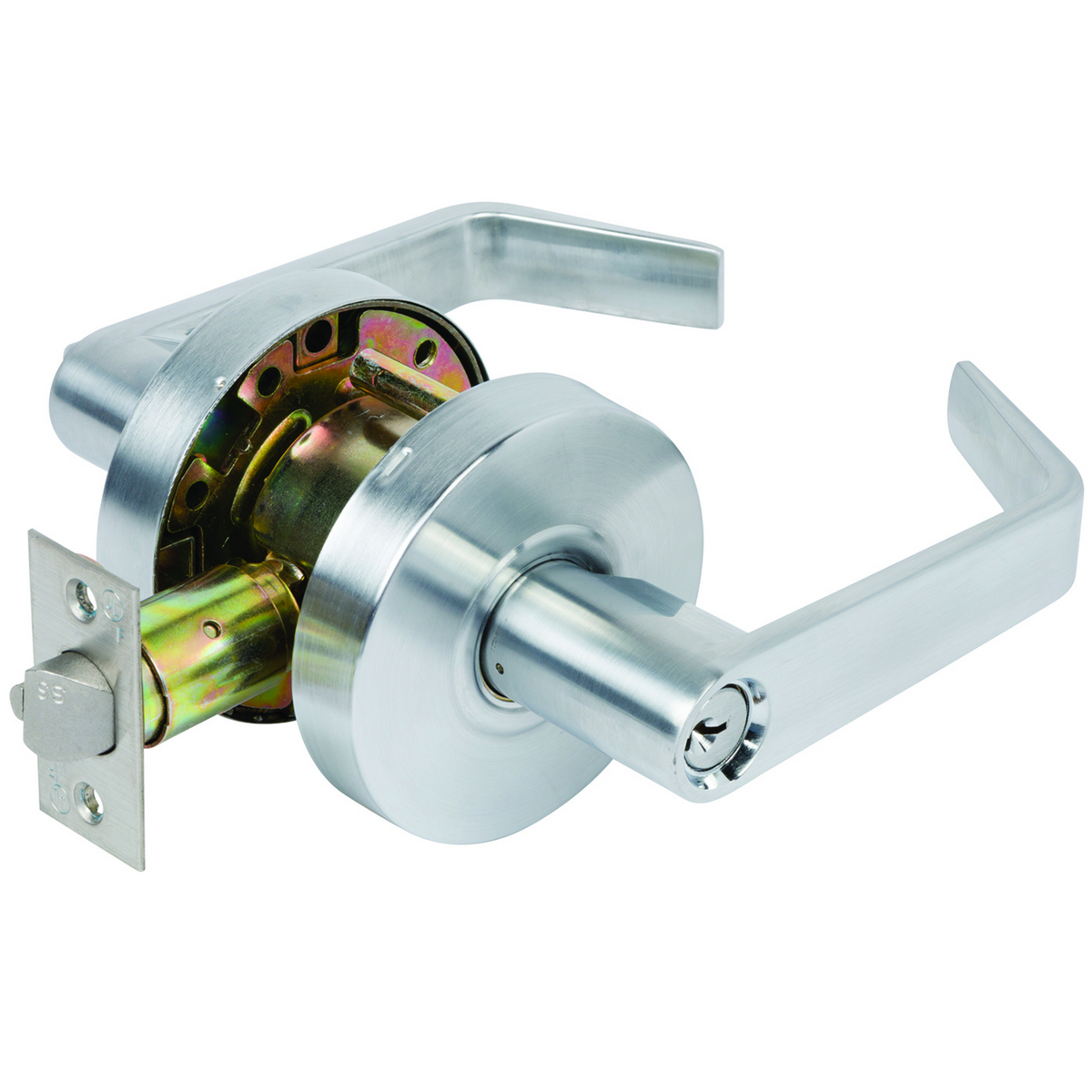

PHG ES Series Grade 1 Cylindrical Lever Lock with Clutch, Charlotte Lever, Satin Chrome

$65.95

Secure checkout

Free 3-day shipping over $850

30-day returns

Manufacturer warranty

Buying for a project? Get a quote

Secure checkout — encrypted & PCI-compliant

A Grade 1 cylindrical lever lock from Philadelphia Hardware Group's ES Series, with the Charlotte (CT) lever in satin chrome. A clutch lets the locked outside lever turn freely. Pick the function above.

Type	Cylindrical lever lock with clutch (free-wheeling)
Grade	ANSI Grade 1
Fire rating	UL 10C, 3 hour
ADA	Compliant
Lever	Charlotte (CT)
Backset	2-3/4 in. standard (2-3/8 in. sold separately)
Door thickness	1-3/4 in. to 2 in., preset at 1-3/4 in.
Latch	1/2 in. throw stainless steel latch, fits flat or beveled doors
Strike	ASA strike
Cylinder	Solid brass Schlage C 6-pin (SC4), 2 keys
Handing	Non-handed
Finish	Satin chrome (US26D)
Warranty	Lifetime mechanical
Entry (500)	The inside push button locks the outside lever. Turning the inside lever or the outside key releases it.
Storeroom (504)	Outside lever always locked. The key or the inside lever retracts the latch.
Classroom (509)	A key locks or unlocks the outside lever. The inside lever is always free.
Part numbers	500ES-CT-26D: entry 504ES-CT-26D: storeroom 509ES-CT-26D: classroom
