Philadelphia Hardware Group

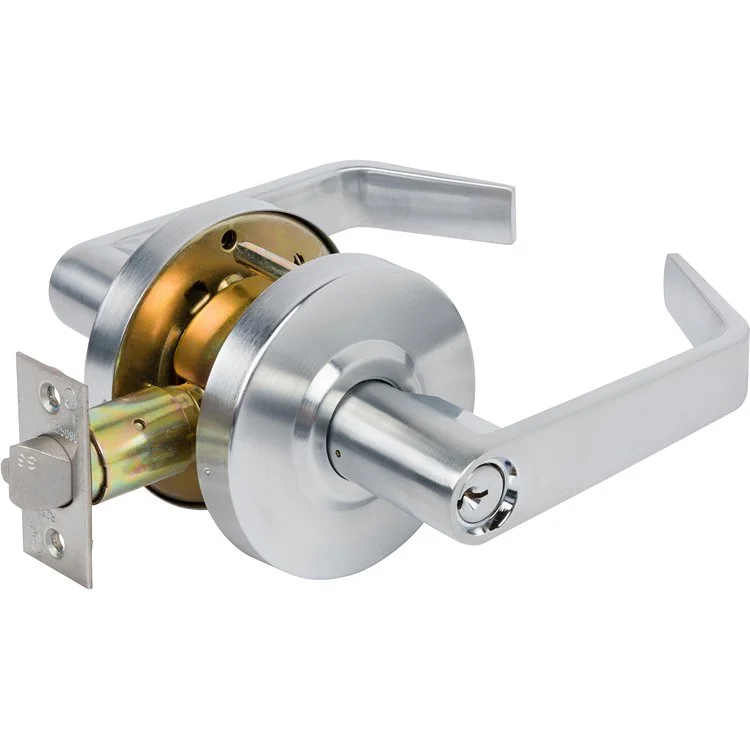

PHG HS Series Grade 2 Cylindrical Lever Lock, Charlotte Lever, Satin Chrome

$55.95

Secure checkout

Free 3-day shipping over $850

30-day returns

Manufacturer warranty

Buying for a project? Get a quote

Secure checkout — encrypted & PCI-compliant

A Grade 2 cylindrical lever lock from Philadelphia Hardware Group's HS Series, with the Charlotte (CT) lever in satin chrome. Pick the function above.

Type	Cylindrical lever lock
Grade	ANSI Grade 2, rated past 400,000 cycles
Fire rating	3 hour
Lever	Charlotte (CT)
Backset	2-3/4 in. standard
Cylinder	Schlage C 6-pin. SFIC versions are sold less core.
Finish	Satin chrome (US26D)
Entry (500)	The inside push button locks the outside lever. Turning the inside lever or the outside key releases it.
Passage (501)	Both levers always free
Privacy (502)	The inside button locks the outside lever
Storeroom (504)	Outside lever always locked. The key or the inside lever retracts the latch.
Classroom (509)	A key locks or unlocks the outside lever. The inside lever is always free.
SFIC versions	Entry and storeroom prepped for small format interchangeable cores (ICB), sold less core
Part numbers	500HS-CT-26D, 501HS-CT-26D, 502HS-CT-26D, 504HS-CT-26D, 509HS-CT-26D SFIC: 500HS-CT-26D-ICB, 504HS-CT-26D-ICB
