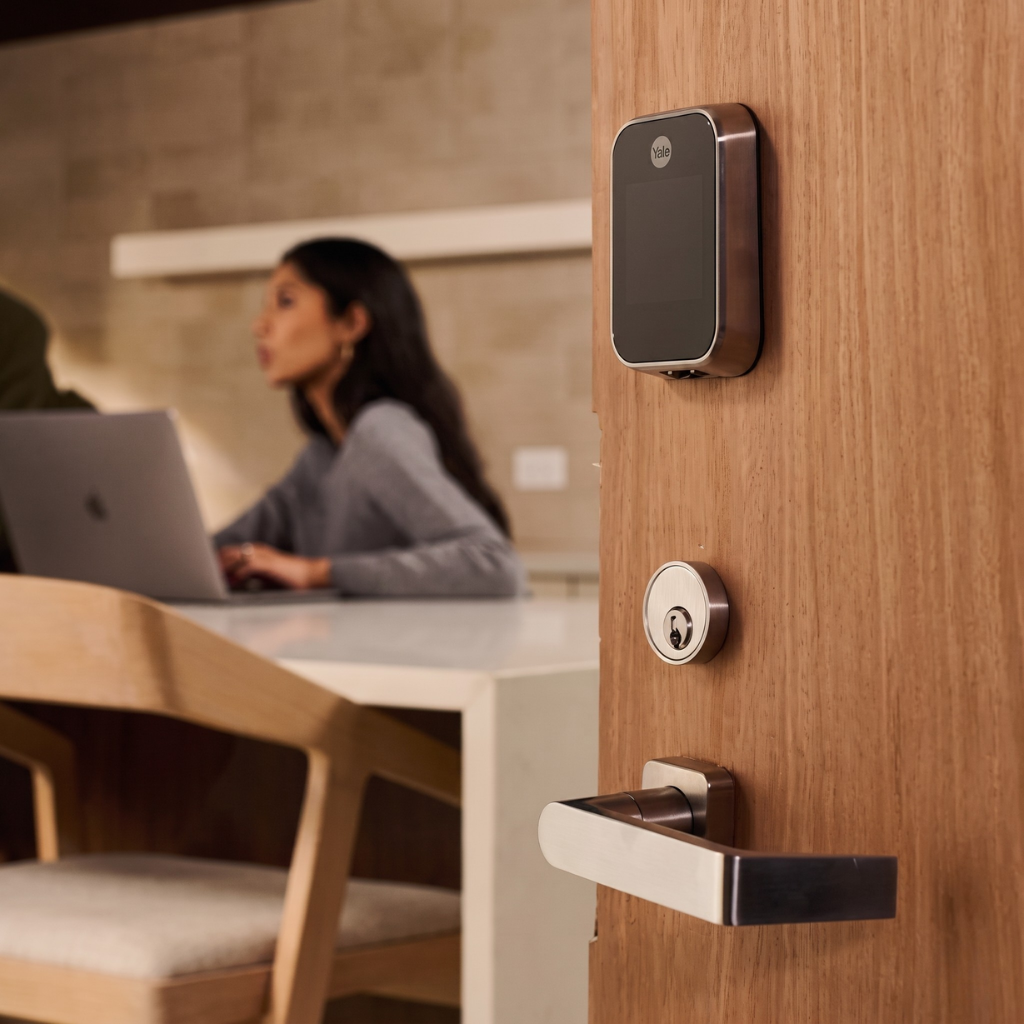

Yale Touchscreen Keyed Mortise WF1 YMM624

Upgrade your door hardware inventory with the Yale Pro 2 Touchscreen Keyed Mortise Lock with WiFi. Engineered for multifamily housing, managed properties, and commercial applications, this smart mortise lock blends Yale security with modern access management. It is an excellent offering for contractors, facility managers, and wholesale buyers looking to provide keyless convenience without sacrificing heavy duty reliability.

Key Product Benefits

• Commercial Grade Durability: ANSI/BHMA A156.13 Grade 1 certification and features a 3 hour fire rating for maximum commercial code compliance.

• Weather and Storm Ready: IPX5 rated for water resistance and A250.13 Windstorm Listed to ensure dependable exterior performance.

• Direct WiFi Integration: Operates on local networks right out of the box without requiring external bridges or hubs.

• Flexible Technology Options: Equipped with Bluetooth and WiFi capabilities, with available Z Wave Plus LR and Zigbee integration for expansive smart building ecosystems.

• Versatile Access Options: Users can unlock via the illuminated touchscreen keypad, the Yale Access App, voice control, or the physical backup key.

• Customizable Keying: Includes 2 keys with a standard KD (Keyed Different) setup. Options for KA (Keyed Alike), MK (Master Keyed), and BKMK (Builder Keyed) configurations to seamlessly suit any facility master key system.

• Reliable Backup Power: Features a traditional keyed cylinder override and a 9V backup power terminal to guarantee entry during complete battery depletion.

Wholesale and Installer Advantages

The Yale Pro 2 Mortise lock delivers a highly requested upgrade path for existing mortise preparations. Its fingerprint resistant matte touchscreen provides a premium aesthetic that appeals to property owners, while the comprehensive specification tolerances save time for hardware professionals on site. The detailed activity tracking in the Yale Access app offers clients a clear audit trail for common areas and private units.

Technical Specifications

• Door Specs: 1 1/4 inch Face Bore, 2 3/4 inch Backset

• Door Thickness: 1 3/4 inch, 2 inch, and 2 1/4 inch options

• Strike: 124mm x 32mm x 2.5mm with Lip Standard

• Latch: 3/4 inch Throw Latch, 1 inch Deadbolt (optional)

• Keyway: KW (Standard) or SC 5 pin or 6 pin Cylinder. Optional SC 1

• Keys: 2 included per lock

• Keying Options: KD Keyed Different (Standard), KA Keyed Alike, MK Master Keyed, BKMK Builder Keyed

• Durability and Security: ANSI/BHMA A156.13 Grade 1 Certified, Fire Rating of 3 hours, IPX5 Rated

• Windstorm Rating: A250.13 Windstorm Listed

• Technology Options: Bluetooth, WiFi Certified, Z Wave Plus LR, Zigbee

• Operating Temperature: Negative 13F (Negative 25C) to 151F (66C)

• Storage Temperature: Negative 22F (Negative 30C) to 176F (80C)

• Humidity: Under 85 percent Non condensation
